BRONZE FILTER CARTRIDGE PLATE 62X62X3 35MICRON

DALON’s 62×62×3 mm Bronze Filter Cartridge Plate is a compact, square-format porous filter manufactured using sintered bronze powder metallurgy. With a nominal filtration rating of 35 microns, this filter plate is engineered for use in flat-mounted fluid filtration systems requiring consistent flow and particulate retention.

The sintered structure features a uniform and interconnected pore network, offering high permeability while effectively trapping debris, oil sludge, or fine particulates from lubricants, compressed air, hydraulic oils, or low-viscosity fluids. Its robust design enables integration into filtration trays, enclosure panels, fluid lines, and custom equipment components.

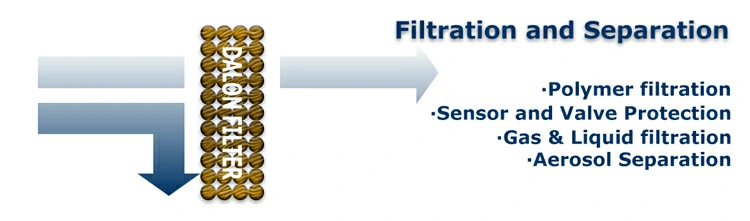

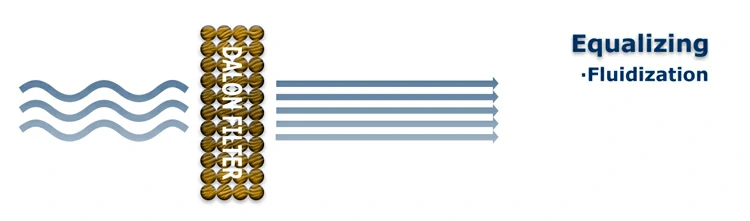

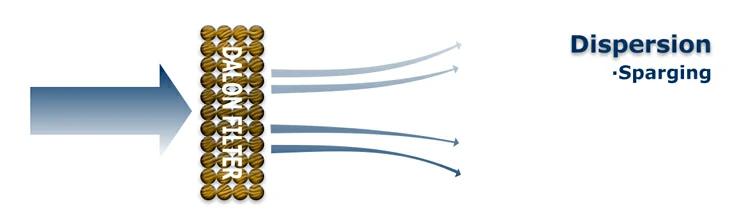

Ideal for oil filtration, gas dispersion, fluidized beds, or vented covers, this porous bronze plate offers excellent chemical resistance, thermal stability, and mechanical strength. It is suitable for reuse after cleaning, providing a long service life and low maintenance requirements.

Key Features

• Filtration Rating: 35 microns (nominal)

• Size: 62 mm × 62 mm × 3 mm

• Material: Sintered bronze (CuSn alloy)

• Porosity: Uniform open-cell structure for consistent flow

• Design: Flat square cartridge plate, easy integration

• Performance: Withstands vibration, temperature, and corrosion

• Washable & Reusable: Compatible with solvent cleaning or ultrasonic methods

Applications

• Return-line or reservoir oil filtration in machinery

• Protective barrier in pneumatic enclosures and pump systems

• Pre-filtration in fuel dispensing or hydraulic units

• Gaseous diffusion or air equalization applications

• Flat-seal filter assemblies in compressors and fluid skids

• Small engine systems, compressors, or lab testing modules

Why Choose DALON

DALON specializes in the production of porous metal filters, including sintered bronze filter plates that combine durability, performance, and precision. All products are manufactured under ISO 9001:2015 standards, guaranteeing consistent filtration behavior and pore size reliability.

We support:

• Custom dimensions, thicknesses, and micron ratings

• OEM mold development and prototyping

• Short production lead times for stocked or custom formats

• Engineering support for integration into your filtration system

Delivery Schedule

• Standard mold product: Delivery in ~30 days

• Custom mold & production: 35–40 days (includes tooling)

• MOQ for custom parts: Please contact DALON directly for a quote

FAQ – Frequently Asked Questions

Q1: What particles does a 35µm porous filter remove?

It captures fine particulates like metal debris, dust, oxidation particles, and contaminants in oil, gas, or air flow systems.

Q2: Can this bronze filter plate be reused?

Yes, it’s washable with air, solvent, or ultrasonic cleaning, making it reusable over many cycles.

Q3: Is it suitable for high-temperature environments?

Absolutely. Sintered bronze handles temperatures up to 300°C and is stable under heat and vibration.

Q4: How does this filter compare to mesh or felt filters?

Sintered bronze offers rigid structure, better mechanical resistance, and long service life, unlike disposable filters.

Q5: Can this filter be customized in shape or micron rating?

Yes. DALON offers custom cutting, shaping, and micron selection (5–200µm) based on customer requirements.

Q6: How is it mounted?

The flat design allows easy installation into housings, clamped trays, or gaskets for sealed assemblies.

What Do People Also Ask? (Expanded Q&A)

Q: What is a porous metal filter used for?

Porous filters are used in systems that require consistent fluid or gas flow while capturing solid contaminants. They’re common in hydraulic systems, compressors, fuel systems, and ventilation.

Q: How is a sintered porous filter different from a mesh screen?

Sintered porous filters are 3D structures with depth filtration capability, whereas mesh screens only provide surface-level filtration and are more prone to clogging.

Q: Are porous filters suitable for both oil and gas applications?

Yes. Sintered bronze filters are compatible with lubricating oils, fuels, air, and inert gases—making them ideal for multi-phase systems.

Q: How long does a porous filter last?

Depending on usage and maintenance, a bronze porous filter plate can last years. It’s durable, cleanable, and resistant to degradation.
